DC M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch

    Buy cheap DC M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch from wholesalers

    Buy cheap DC M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch from wholesalers
    • Buy cheap DC M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch from wholesalers

    DC M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : I1B08*NA
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 3000PCS per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    DC M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch

    Dc M8 Brass Tube Cylindrical Namur Proximity Sensor NC Output Sensor Switch


    Product description :


    Series : M8 NAMUR Proximity Sensor

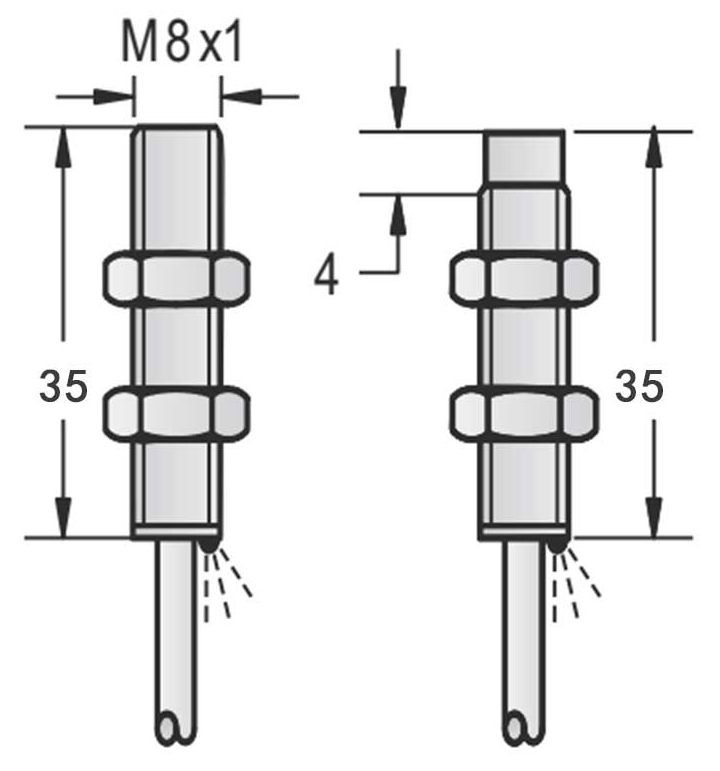

    Size : M8*1*35mm
    Housing Material : Brass nickel plated
    Mounting : shielded/Non-shieldedN
    Sensing Distance Sn(mm) : 1mm/2mm
    Operating Voltage : DC 6-12V
    Output function : NC
    Connection : 2M PVC cable


    Specification of the sensor :


    DC M8 NAMUR Proximity Sensor
    SizeM8*1*35mmM8*1*40mm
    MountingShieldedNon-shielded
    Sensing Distance Sn(mm)1mm2mm
    Housing MaterialBrass nickel plated
    With or Without LEDwithout LED
    Operating Voltage6-12VDC
    Ripple-
    No Load Current>2.2mA(OFF)< 1.1mA(ON)
    Switching Frequency1.5KHz
    Response Time0.1ms
    Switching Hysteresis<15%(Sr)
    Repeat Accuracy3%(Sr)
    Protection CategoryIP67
    Operating Temperature-25°C - +70°C
    Temperature Drift10%(Sr)
    Short Circuit Protection-
    Overload Trip Point-
    The time of Delay start<10ms
    EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
    Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
    Material Active FacePBT
    ConnectionD3 2*0.15 PVC 2M
    NAMURI1B08*NAI2B08*NA


    FAQ :


    Q1 , What about the samples?

    A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.


    Q2, What is the MOQ?

    A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.


    Q3, How about the delivery time?

    A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.


    Q4, How about the after-sales service?

    A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.


    Q5, How about the packing?

    A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
