    Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : P1S12*NO-M12-78C
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 8-12 work days
    • Product Details
    • Company Profile

    Stainless Steel High Pressure Proximity Sensor DC M12 With M12 4 Pin Plug Connection

    DC M12 Stainless Steel Oil Pressure Inductive Proximity Sensor Swtich With M12 4 Pin Plug Connection


    Quick detail for the sensor :

    Series : M12 High Pressure Rated Inductive Proximity Sensor
    Size : M12*78-M12
    Housing Material : stainless steel
    Mounting : shielded
    Sensing Distance Sn(mm): 1.5mm/2mm
    Operating Voltage : DC 10-30V
    Output function : NPN/PNP NO/NC
    Max. Pressure : 500 bar
    Protection Category : IP68
    connection : M12 4 pin connector


    Specification of the sensor :

    DC M12 High Pressure Rated Inductive Proximity Sensor with M12 connector

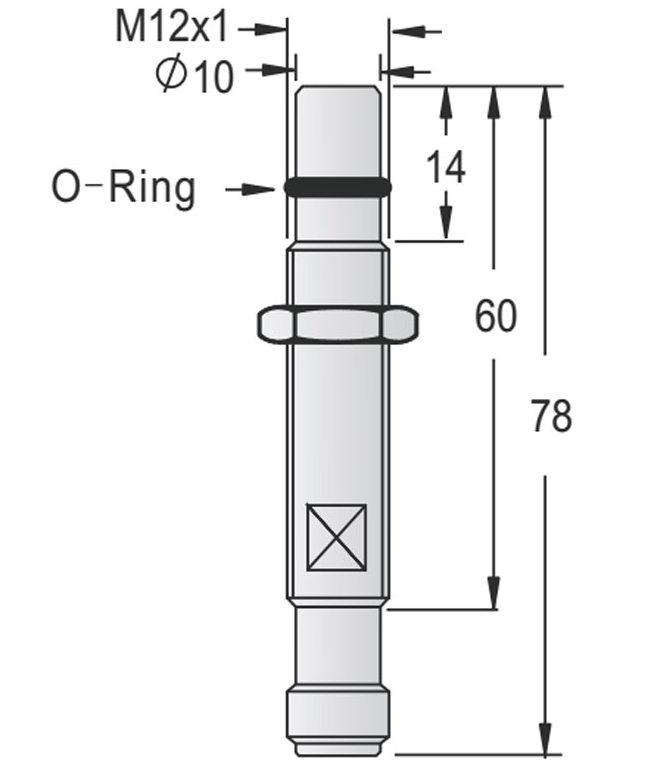

    SizeM12*78mm-M12
    Mounting● shielded
    Sensing Distance Sn(mm)1.5mm / 2mm
    Housing MaterialStainless steel
    With or Without LEDWithout LED
    Operating Voltage10-30VDC
    Ripple<10%
    No Load Current<10mA
    Max.Load Current150mA
    Leakage Current<0.01mA
    Voltage Drop<1.5V
    Switching Frequency500Hz
    Response Time1.0ms
    Switching Hysteresis<15%(Sr)
    Repeat Accuracy<3.0%(Sr)
    Protection CategoryIP68
    Operating Temperature-25°C - +70°C
    Temperature Drift<10%(Sr)
    Short Circuit ProtectionYES
    Overload Trip Point180mA
    EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
    Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part7.4.2
    Material Active FaceZrO2
    Max. Pressure500 bar
    ConnectionWith M12 4pin Connector
    DC 3 wire 10-30V NPN NOP1S12*NO-M12-78C
    DC 3 wire 10-30V NPN NCP1S12*NC-M12-78C
    DC 3 wire 10-30V PNP NOP1S12*PO-M12-78C
    DC 3 wire 10-30V PNP NCP1S12*PC-M12-78C


    Friendly reminder about the sensor :
    1.There are two types of proximity switches, flush and non-flush. If the mounting bracket is made of metal, the shell of the non-flush switch must be exposed to a certain length during installation. For flush installation, no exposure or only a small amount of exposure is required. If installed side by side, There must be a certain interval between the switches. The specific interval is subject to no interference after installation. If the mounting bracket is non-metal, then there is no installation limit on the distance to find the object.


    2.The factory inspection standard of the inductive proximity switch is a 1mm thick square Fe37 iron sheet. The detection distance in actual application will vary with the material of the object to be tested.


    3.Capacitive proximity switches can detect almost all objects with static electricity. The detection distance of the product will be affected by the thickness, size, conductivity, and surface flatness of the detected object. The thicker the detected object, the larger the size. The stronger the conductivity, the smoother the surface, the easier it is to detect, and the longer the detection distance.


    FAQ :

    Q1. What about the samples?

    A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.


    Q2. What is the MOQ?

    A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.


    Q3. How about the delivery time?

    A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.


    Q4. How about the after-sales service?

    A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.


    Q5. How about the packing?

    A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
