    PTFE Corrosion Resistance M18 Proximity Sensor Long Range Capacitive

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : C1P18*NO-TEL-PUR
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 8-12 work days
    • Product Details
    • Company Profile

    PTFE Corrosion Resistance M18 Proximity Sensor Long Range Capacitive

    Dc M18 PTFE Corrosion Resistance Material Long Range Of Capacitive Proximity Sensor

    Products Description :
    Series : M18 Corrosion Resistant Capacitive Proximity Sensor

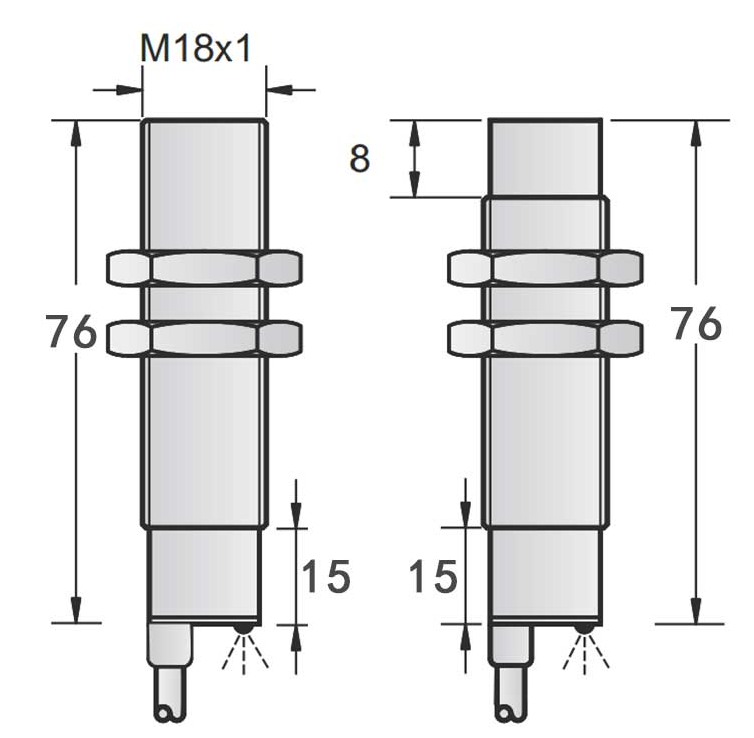

    Size : M18*1*76mm
    Housing Material : PTFE
    Mounting : Shielded/Non-shielded
    Sensing Distance Sn(mm): 8mm/15mm adjustable
    Operating Voltage : 10-40V DC
    Output function : NPN/PNP NO/NC
    connection : 2M PUR cable

    Datasheef of the sensor :

    DC M18 Corrosion Resistant Capacitive Proximity Sensor with cable
    SizeM18*76mm
    Mounting● shielded○ Non-shielded
    Sensing Distance Sn(mm)1~8mm adjustable1~15mm adjustable
    Housing MaterialPTFE
    With or Without LED● with LED
    Operating Voltage10-30VDC
    Ripple<10%
    No Load Current<10mA
    Max.Load Current150mA
    Leakage Current<0.01mA
    Voltage Drop<1.5V
    Switching Frequency50Hz
    Response Time1.5ms
    Switching Hysteresis<15%(Sr)
    Repeat Accuracy<5%(Sr)
    Protection CategoryIP67
    Operating Temperature-25°C - +70°C
    Temperature Drift<10%(Sr)
    Short Circuit ProtectionYES
    Overload Trip Point180mA
    EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
    Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
    Material Active FacePTFE
    ConnectionD5.0 3*0.34 2M PUR
    DC 3 wire 10-30V NPN NOC1P18*NO-TEL-PURC2P18*NO-TEL-PUR
    DC 3 wire 10-30V NPN NCC1P18*NC-TEL-PURC2P18*NC-TEL-PUR
    DC 3 wire 10-30V PNP NOC1P18*PO-TEL-PURC2P18*PO-TEL-PUR
    DC 3 wire 10-30V PNP NCC1P18*PC-TEL-PURC2P18*PC-TEL-PUR


    FAQ :

    Q1 , What about the samples?

    A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.


    Q2, What is the MOQ?

    A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.


    Q3, How about the delivery time?

    A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.


    Q4, How about the after-sales service?

    A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.


    Q5, How about the packing?

    A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
