Wireless DC M18 Metal Tube Proximity Capacitive Sensor Switch With 4 Pin M12 Connector

    Buy cheap Wireless DC M18 Metal Tube Proximity Capacitive Sensor Switch With 4 Pin M12 Connector from wholesalers

    Buy cheap Wireless DC M18 Metal Tube Proximity Capacitive Sensor Switch With 4 Pin M12 Connector from wholesalers
    • Buy cheap Wireless DC M18 Metal Tube Proximity Capacitive Sensor Switch With 4 Pin M12 Connector from wholesalers

    Wireless DC M18 Metal Tube Proximity Capacitive Sensor Switch With 4 Pin M12 Connector

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : C2B1808PO-M12
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000PCS per month
    Delivery Time : 8-12 work days
    • Product Details
    • Company Profile

    Wireless DC M18 Metal Tube Proximity Capacitive Sensor Switch With 4 Pin M12 Connector

    Dc Wireless M18 Metal Tube Capacitive Proximity Sensor Switch With 4 Pin M12 Connector

    Brief introduction of the sensor :
    Series : M18 Capacitive proximity sensor
    Size : M18*85-M12
    Housing Material : brass nickel plated
    Mounting : Shielded/Non-shielded
    Sensing Distance Sn(mm): 2-15mm adjustable
    Operating Voltage : DC 10-40V
    Output function : NPN/PNP NO/NC
    Protection Category : IP67
    connection : M12 4 pin connector

    Datasheef of the sensor :

    DC M18 Capacitive Proximity Sensor with M12 connector

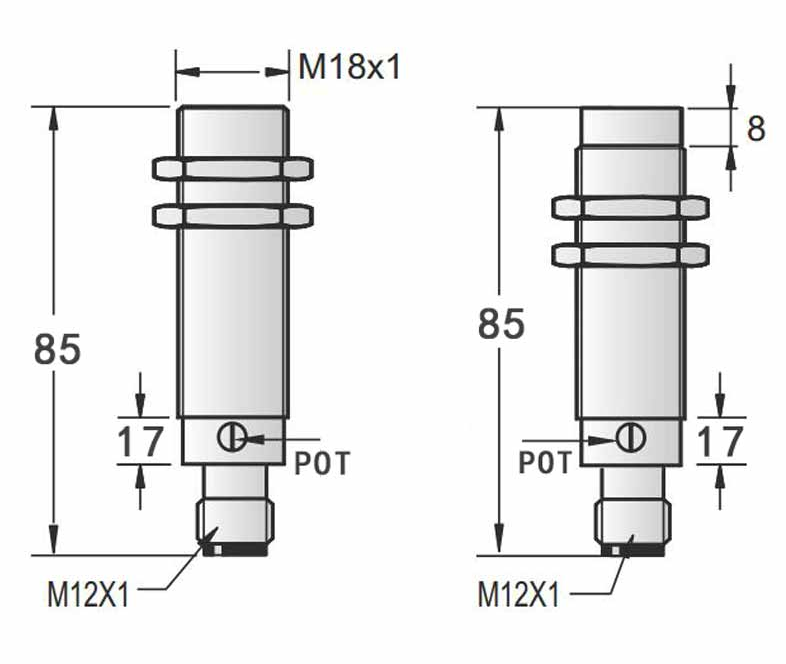

    SizeM18*85mm
    Mounting● shielded○ Non-shielded
    Sensing Distance Sn(mm)1~8mm adjustable1~15mm adjustable
    Housing MaterialBrass nickel plated
    With or Without LED● with LED
    Operating Voltage10-40VDC
    Ripple<10%
    No Load Current<10mA
    Max.Load Current150mA
    Leakage Current<0.01mA
    Voltage Drop<1.5V
    Switching Frequency50Hz
    Response Time1.5ms
    Switching Hysteresis<15%(Sr)
    Repeat Accuracy<5%(Sr)
    Protection CategoryIP67
    Operating Temperature-25°C - +70°C
    Temperature Drift<10%(Sr)
    Short Circuit ProtectionYES
    Overload Trip Point180mA
    EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
    Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
    Material Active FacePBT
    ConnectionWith M12 4 pin Connector
    DC 3 wire 10-40V NPN NOC1B18*NO-M12-85CC2B18*NO-M12-85C
    DC 3 wire 10-40V NPN NCC1B18*NC-M12-85CC2B18*NC-M12-85C
    DC 3 wire 10-40V PNP NOC1B18*PO-M12-85CC2B18*PO-M12-85C
    DC 3 wire 10-40V PNP NCC1B18*PC-M12-85CC2B18*PC-M12-85C
    DC 4 wire 10-40V NPN NO+NCC1B18*NS-M12-85CC2B18*NS-M12-85C
    DC 4 wire 10-30V PNP NO+NCC1B18*PS-M12-85CC2B18*PS-M12-85C






































    Relevant information about the service :

    Shipping ways :
    Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
    When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
    Sea transportation is also can be considered, but only appointed agent accetpable.

    Payment term :
    1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
    2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;


    Delivery time :
    The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
    If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

    After-sales services :
    1. The warranty period is 12 months
    2. If we send the wrong parts to you, free replacement will be available
    3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
