    Waterproof Plastic Capacitive M30 Proximity Sensor

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : C2P3030AO
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 8-12 work days
    • Product Details
    • Company Profile

    Waterproof Plastic Capacitive M30 Proximity Sensor

    AC 2 Wire 20-250V M30 Waterproof Plastic Capacitive Proximity Sensor Switch


    Brief introduction about the sensor :

    Series : M30 AC Capacitive proximity sensor

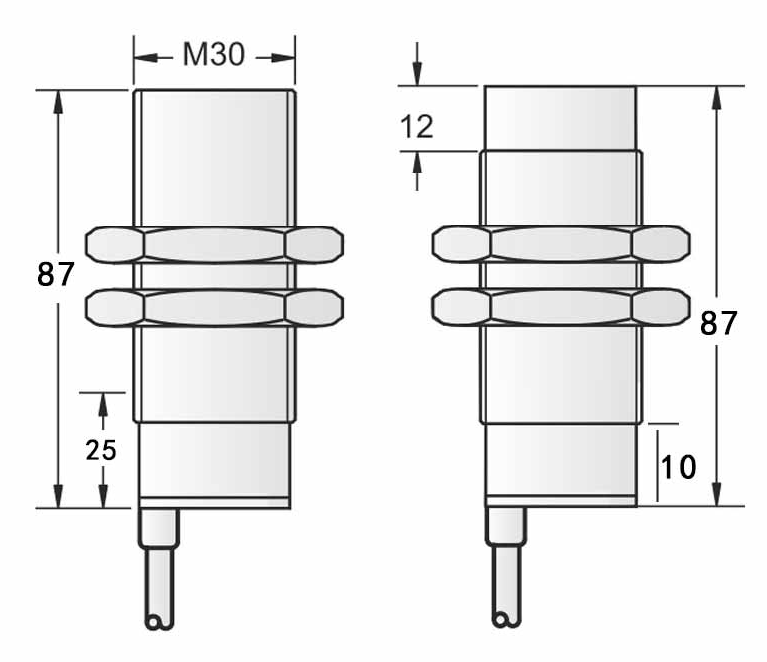

    Size : M30*1.5*87mm
    Housing Material : ABS plastical
    Mounting : Shielded/Non-shielded
    Sensing Distance Sn(mm): 2-20mm/2-30mm adjustable
    Operating Voltage : 20-250V AC
    Output function : NO/NC
    connection : 2M PVC cable


    Specification of the sensor :

    AC M30 Capacitive Proximity Sensor with cable
    SizeM30*87mm
    Mounting● shielded○ Non-shielded
    Sensing Distance Sn(mm)1~20mm adjustable1~30mm adjustable
    Housing MaterialABS
    With or Without LED● with LED
    Operating Voltage20-250VAC
    No Load Current<2.5mA
    Max.Load Current300mA
    Leakage Current<2.5mA
    Voltage Drop<9VAC AT 300mA
    Switching Frequency<25Hz
    Response Time10ms
    Switching Hysteresis<15%(Sr)
    Repeat Accuracy<5%(Sr)
    Protection CategoryIP67
    Operating Temperature-25°C - +70°C
    Temperature Drift<10%(Sr)
    Short Circuit Protection-
    Overload Trip Point-
    EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
    Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
    Material Active FaceABS
    ConnectionD5 2*0.34 2M PVC
    AC 2 wire 20-250V NOC1P30*AOC2P30*AO
    AC 2 wire 20-250V NCC1P30*ACC2P30*AC

    Relevant information for the service :

    Shipping ways :
    Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
    When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
    Sea transportation is also can be considered, but only appointed agent accetpable.

    Payment term
    :
    1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
    2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;


    Delivery time :
    The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
    If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

    After-sales services :
    1. The warranty period is 12 months
    2. If we send the wrong parts to you, free replacement will be available
    3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
