24V DC M18 Analog Inductive Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor

    Buy cheap 24V DC M18 Analog Inductive Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor from wholesalers

    Buy cheap 24V DC M18 Analog Inductive Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor from wholesalers
    • Buy cheap 24V DC M18 Analog Inductive Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor from wholesalers

    24V DC M18 Analog Inductive Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : I2B12*GV-0-10V
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000PCS per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    24V DC M18 Analog Inductive Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor

    24VDC M18 Analog Proximity Sensor With 0-10V Voltage Output Normal Cable Sensor


    Product description :


    Series : M18 Analog Inductive Voltage output sensor

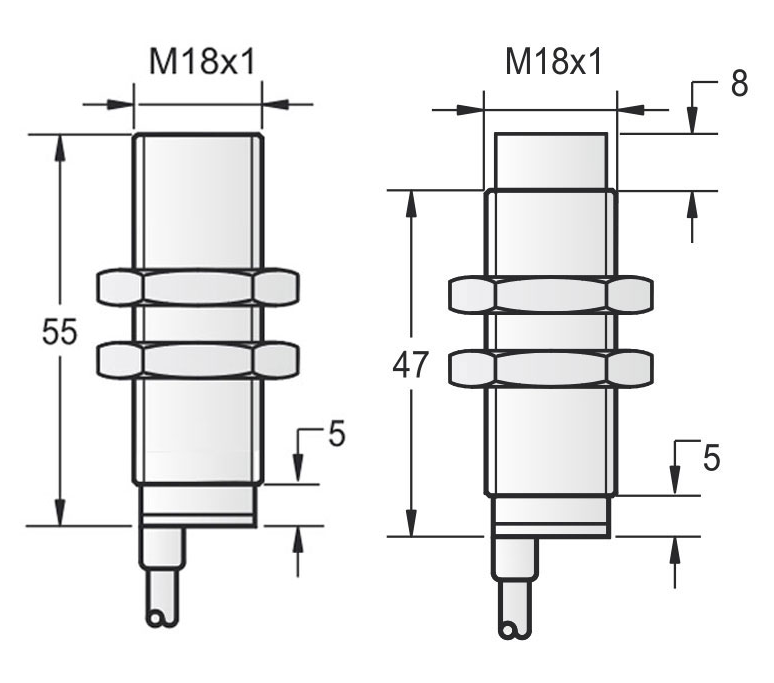

    Size : M18*1*55mm
    Housing Material : brass nickel plated
    Mounting : shielded/Non-shielded
    Sensing Distance Sn(mm) : 5mm/8mm
    Operating Voltage : DC 18-30V
    Output function : 0-10V
    Protection Category : IP67
    connection : 2M PVC cable


    Specification of the sensor :


    DC 3 wire M18 Analog Inductive Voltage output sensor with cable
    SizeM18*55mm
    MountingshieldedNon-shielded
    Sensing Distance Sn(mm)1.0-5.0mm1.0-8mm
    Housing MaterialBrass nickel plated
    With or Without LEDWithout LED
    Operating Voltage18-30VDC
    Ripple<10%
    No Load Current<15mA
    Output Voltage/Load Resistor0-10VDC/ >4.7KΩMax.
    Linearity<10%(Sr)
    Repeat Accuracy0.02mm
    Ambient Temperature-25°C - +70°C
    Temperature Drift<5%(Sr)
    Short Circuit Protection-
    Reverse Polarity ProtectionYES
    Protection DegreeIP67
    Switch Frequency Max.100Hz
    Time Delay Before Availability-
    EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
    Shock/VibrationIEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
    Material Active FacePBT
    Connection5.0Φ 3*0.15 2M PVC
    Inductive Voltage OutputI1B12*GV-0-10VI2B12*GV-0-10V

    Relevant information about the service :


    Shipping ways :
    Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
    When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
    Sea transportation is also can be considered, but only appointed agent accetpable.

    Payment term :
    1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
    2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;


    Delivery time :
    The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
    If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

    After-sales services :
    1. The warranty period is 12 months
    2. If we send the wrong parts to you, free replacement will be available
    3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
